Roadrunner specs and accessories

The folks at Xtracycle offer a few different build options for the Edgerunner, with different gearing and brakes, but once we decided we wanted an internal hub, it was cheapest to just buy the frame and build from there, rather than buy one of the stock bikes and swap parts.

First, a shout out to the Facebook group (R)Evolutions Per Minute: Cargo Bikes in the US.  Cargo bike owners and enthusiasts graciously answered questions and provided input throughout the entire longtail selection and building process, and their help was invaluable.  (R)Evolutions Per Minute is the Facebook group of the Less Car More Go cargo bike documentary project (learn more and check out the Kickstarter campaign).

Also, thanks again to The Hub (our LBS) for taking on this project (there are no official Xtracycle dealers in StL) and to the folks at Xtracycle, for taking time to answer our questions.

The Build

  • Edgerunner frameset w/ FSA Pig PRO headset
  • Alfine 11 Hub with parts kit and shifter
  • Alfine chain tensioner (needed on vertical dropout frame)
  • SRAM PC830 chains
  • 45 tooth front ring and an 18 tooth or 20 tooth cog on the rear (we asked The Hub for this build per the recommendation from Splendid Cycles; I’d actually have to go out and count the teeth to see whether or not this happened)
  • Avid BB7 Brakes Front and Rear, with Shimano centerlock adapter in rear
  • Brake levers: a longer city/hybrid style
  • Upgraded Avid Slickwire Brake Cable and housing to improve brake modulation and power (especially in rear)
  • Wheels: Shimano Rhyno Lite Rims, Butted Spokes, Brass nipples, Shimano XT front hub
  • Schwalbe Big Apples in black, front and rear.  26 x 2.15 with k-guard for front, and 20 x 2.15 with raceguard for rear
  • FSA Metropolis Cranks with Shimano UN-55 Bottom Bracket
  • Handlebar: Stock bar from a Kona Dew Delux that we tried and liked in the shop, similar to Civia Humbolt Handlebar
  • Kalloy UNO seatpost (will be swapping for a longer one, to accommodate Matthew’s height)
  • Dimension (or similar) stem
  • Hobson Easyseat noseless saddle — an extra one we already had
  • Shimano SPD pedals with SPD on one side, platform on the other

Xtracycle Accessories

  • FlightDeck [Two] rear deck: the new version has ports for the Yepp Easyfit seat built into the deck — this is both good and bad . . .
  • KickBack center kickstand
  • X2 cargo bags: We opted for the more expensive, waterproof X2 bags, rather than the X1 bags.  We were warned that they might not play nicely with the Yepp seat.  That is true, although we may not have fared much better with the X1 bags (more on that in a minute)
  • Standard Xtracycle racks: we liked the idea of the heavy duty P-racks, which also have the benefit of rails to accommodate any pannier, but the P-racks are taller than the standard racks, which would have meant a higher center of gravity for the rear load, so we stuck with the standard
  • Stock Edgerunner fenders (metal): Fenders are a must, and, with the different wheel sizes, it was easiest to order the set from Xtracycle, which comes with a 26″ front and a 20″ rear — the fenders provide great coverage and are very sturdy

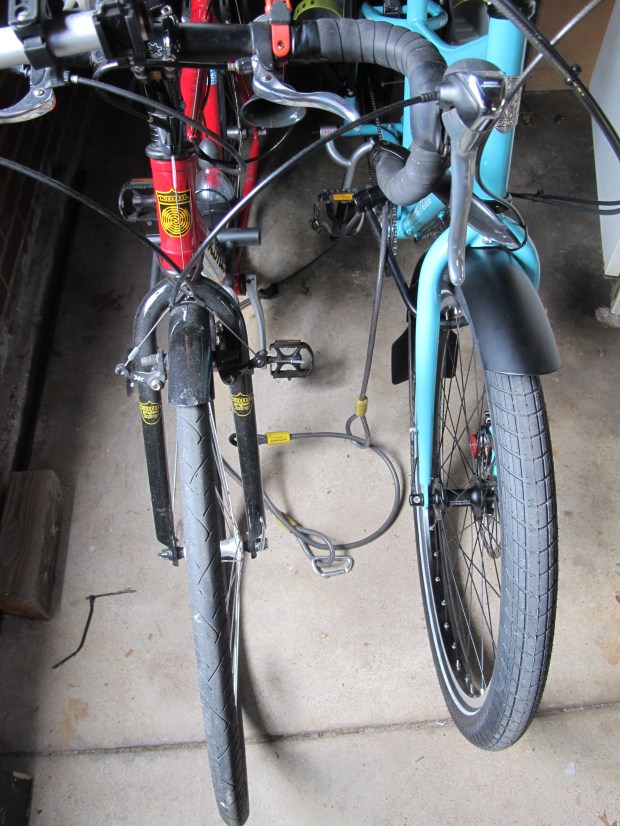

Baby Jake on the left, Roadrunner on the right

Baby Jake on the left, Roadrunner on the right

Our Add-ons

  • Two brackets for use with our Planet Bike rear lights
  • One bracket for our Planet Bike “be seen” front headlight
  • This accessory mount for the handlebar
  • Mounting bracket for our Cygolite MityCross “see” headlights — for now, we moved the bracket from Matthew’s back-up bike, but at some point we may order an extra bracket
  • Water bottle cage (we had an extra sitting around)
  • Standard bike bell
IMG_4008_Edit

Front light mounts and bell

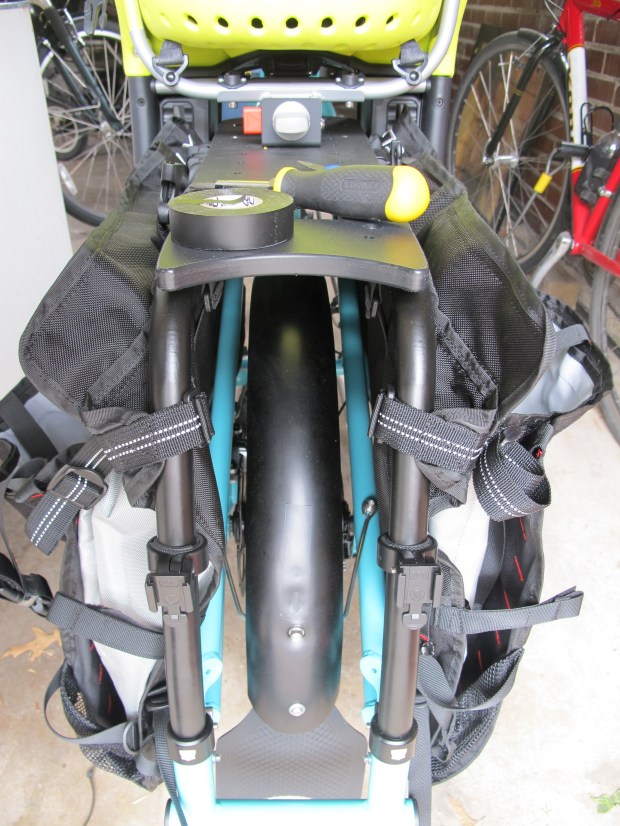

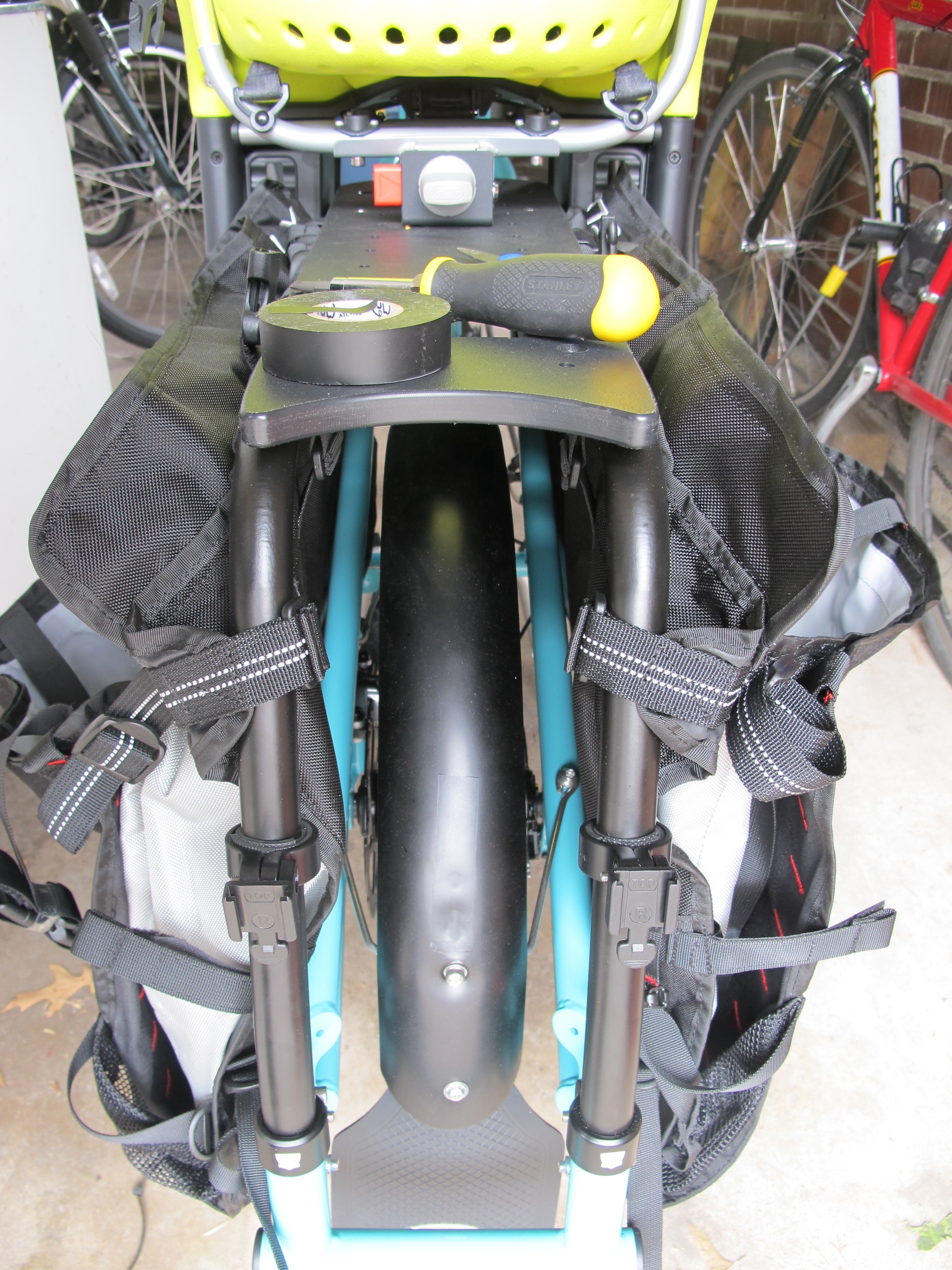

The FlightDeck doubled as a convenient tool stand while installing the rear light brackets

The FlightDeck doubled as a convenient tool stand while installing the rear light brackets

Child seat and bag compatibility issue

We were warned by Xtracycle that the Yepp Child Seat might not play nicely with the X2 cargo bags — specifically, that we would not be able to use the lids that are an integral part of making the X2 bags waterproof.  Thinking long-term, we opted for the X2 bags anyway — in a couple of years, G will have outgrown the child seat, and we’ll have fully-functional bags — until then, we’ll just have to make sure cargo is protected from rain some other way.

Unfortunately, the compatibility issue seems to be exacerbated by the new FlightDeck design.  The previous design required the use of the Yepp Easyfit adapter, which meant the Yepp seat was mounted a couple of inches above the cargo deck.  While the new design, with the Yepp Easyfit ports built right into the cargo deck, is an improvement in terms of keeping the child’s weight lower and not having to buy the adapter, those extra vertical inches may have been key to the seat and the cargo bags playing nicely together.

The footrests on the Yepp seat, which straddle the cargo deck, do not fir over both the deck and the inside layer of the cargo bag when the seat is in the front port.  For our initial test ride, we had to use the rear port for the Yepp seat, which put G’s weight further back on the bike, creating more balance issues.

IMG_3973

The following morning, we came to the above compromise: we returned the Yepp seat to the front port and scrunched the bags toward the back of the rack, so the front of the cargo bag is behind the Yepp footrest.  Not ideal, but seemingly our best option.

A note on the frame color

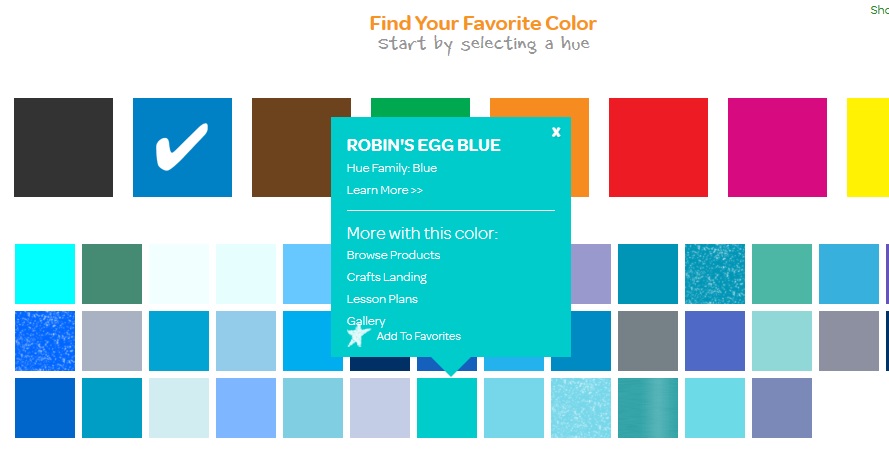

Though you can’t see much of the frame, what you can see in the pictures in this post actually come close to depicting the actual color.  I did a little digging on the Crayola website, trying to find a way to describe our frame color, and found . . .

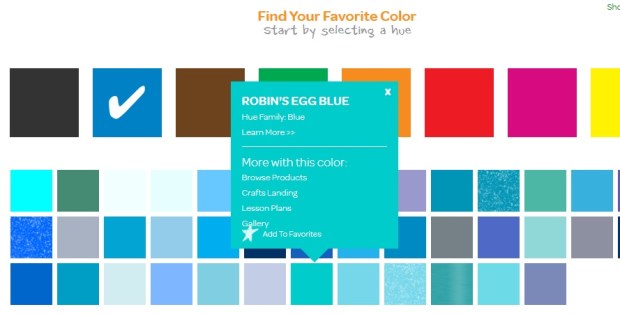

RobinEggBlue

. . . robin’s egg blue!  I think that is the closest color match I’ve seen.
